Typical Properties of RTV Silicone Sealant for Electronics
|
Before Curing |
|
|
Item |
Index |
|
Appearance |
Black semi-flow |
|
Tack free time( min ) |
5~10 |
|
Complete cure time 25℃(H) |
24 |
|
Property( g/cm3) |
1.3±0.02 |
|
Viscosity(mpa.s) |
45000 |
|
After Curing |
|
|
Item |
Index |
|
Hardness( Shore ) ≥ |
50 |
|
Tensile Strength ( Mpa ) ≥ |
2.3 |
|
Breaking Elongation ( % ) ≥ |
350 |
|
Volume resistivity ( Ω.cm3 ) ≥ |
1.5×1014 |
|
Temperature range( ℃ ) |
-55～180 |
|
Flame resistance |
V-0 |
Typical Applications of Electronic Silicone
This one-component silicone is widely used in the electronic component of TV,CRT, Driver,Telecommunication equipment for bonding and sealant. It is also be applied in the inflaming products for sealant purpose ,like metal,plastic glass，rubber etc.
Packing Information of Electronic Silicone

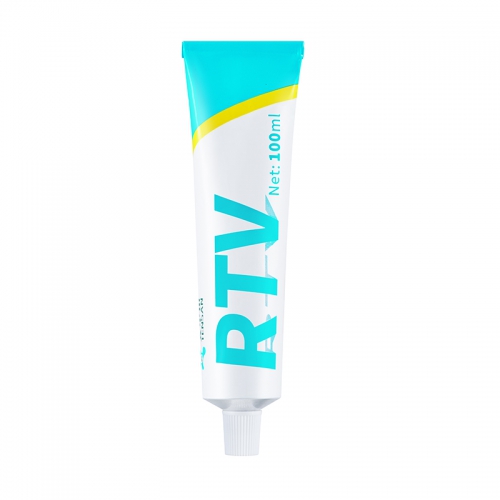

1. Hard plastic tube 100 ml
100 tubes / carton
2. Hard plastic tube 300 ml
24 tubes / carton
3. Hard plastic tube 2600ml
4 tubes / carton
4. 4.Customized packing is acceptable
Storage and Validity of Electronic Silicone
Keep away from children.
Stored in a cool, ventilated, dry place.
Shelf life: 6 months
Other Information
The above information is correct, it does not contain all of the information and can only be used as a guide.
Electronic Silicone TS704 is ROHS, REACH compliant. It does not contain any unknow carcinogenic, mutagenic or teratogenic components.
