Typical Properties of Liquid Silicone Adhesive TS6601
|
Item |
Index |
|
Appearance |
Transparent semi-flow |
|
Tack free time( min ) |
3～8 |
|
Complete cure time 25℃(H) |
24 |
|
Viscosity(Map.s) |
20000 |
|
Specific Gravity( g/cm3) |
0.92 |
|
Hardness( Shore ) ≥ |
25 |
|
Tensile Strength ( Mpa ) ≥ |
1.6 |
|
Breaking Elongation ( % ) ≥ |
150 |
|
Break Voltage(kv/mm) |
≥20 |
|
Cutting Strength(MPa) |
≥1 |
|
Dielectric constant(1.2MHz) |
2.8 |
|
Volume Resistivity ( Ω.cm3 ) ≥ |
2.0×1014 |
|
Temperature range( ℃ ) |
-55～180 |
|
Flame resistance |
HB |
Typical Applications of LED Tube Silicone Adhesive
This material is widely applied in LED Industry for housing sealant and outdoor light waterproof.
◆ Used for LED bulb&Tube&other indoor lights
◆ Used for Street light,High bay &other outdoor lights
◆ Used for LED auto lights
Packing Information of LED Tube Silicone Adhesive

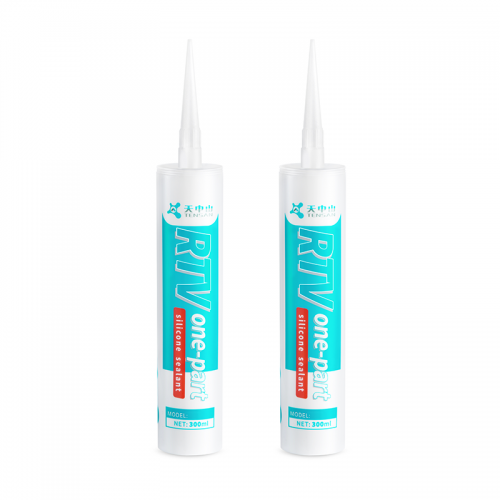

1. Hard plastic tube 100 ml
100 tubes / carton
2. Hard plastic tube 300 ml
24 tubes / carton
3. Hard plastic tube 2600ml
4 tubes / carton
4. Customized packing is acceptable
Storage and Validity of LED Tube Silicone Adhesive
Keep away from children .
Stored in a cool, ventilated, dry place.
Shelf life:6 months
Other Information of LED Tube Silicone Adhesive
The above information are correct, but does not contain all of the information and can only be used as a guide.
This product is ROHS, REACH compliant. It does not contain any unknow carcinogenic, mutagenic or teratogenic components.
