Thermally conductive material

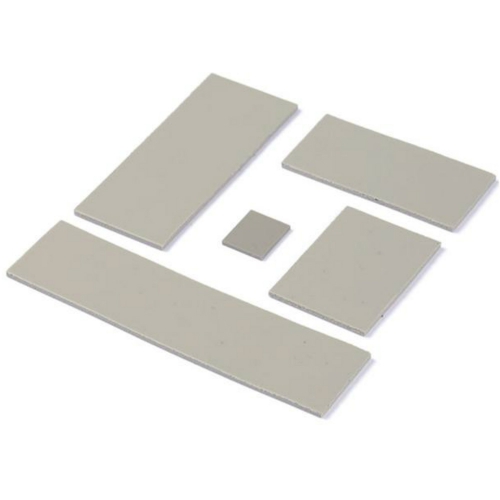

Thermal Pad for Electronics TS300

Product Description of Thermal Pad

1.The product has high thermal conductivity, under the relative pressure  can achieve low interface thermal resistance. Application of power devices and cooling aluminum or machine shell, you can effectively remove the air, to achieve a good filling effect.

2.Products with good insulation pressure and temperature stability, safe and reliable.

3.The product has good softness and resilience.

Thermal Pad for Electronics TS300

Product Description of Thermal Pad

1.The product has high thermal conductivity, under the relative pressure  can achieve low interface thermal resistance. Application of power devices and cooling aluminum or machine shell, you can effectively remove the air, to achieve a good filling effect.

2.Products with good insulation pressure and temperature stability, safe and reliable.

3.The product has good softness and resilience.

    Data Sheet of Thermal Pad

     Feature

     Typical value

     Test standard

     color

     gray

     visual

     Thickness(mm)

     0.5-0.75

     1.0-5.0

     ASTMD374

     Glass fiber reinforced

     yes

     no

     Tensan method

     density

     2.9

     ASTMD792

     hardness

     75

     50

     ASTM D2240

     SUSTAINABLE

     -50--240

     Tensan method

     ELECTICAL performance

     Breakdown voltage (KV)

     >6

     ASTMD149

     Volume resistivity

     9.6*10^10

     ASTMD257

     Flame rating

     V0

     UL94

     Thermal conductive(w/m.k)

     1.0

     ASTM D5470


    Typical applications for Thermal Pad

    ◆ LED lighting, lighting equipment

    ◆ Household appliances, LCD monitors

    ◆ Between the semiconductor and the heat sink

    ◆ Communications products, smart phones, tablet PCs

    ◆ Desktop computers, notebooks and other portable computers

    ◆ High power Electrical appliances power supply

    Features and Advantages of Thermal Pad

    High thermal conductivity, low thermal resistance;

    Excellent insulation performance;

    Good surface wetting;

    Good resilience, reliable long-term duration



    Production Environment of Thermal Pad

    Our company is committed to becoming a leading thermal management and electromagnetic shielding material solution company that can challenge the international giants through independent research and development materials and its application technology. The control of harmful substances is in line with the EU ROHS / ROHS control standards.


    Packing Specifications of Thermal Pad

    Size: length 400mm*200mm  (0.5≤T≤5.0mm), according to customers’ requirements


    Health and Safety

    Shelf life:18 months;

    Storage conditions: Cool and dry place (5℃<T<30℃); Relative humidity: RH<70%
